Advanced Data Model Patterns
David C. Hay
The book Data Model Patterns: Conventions of Thought
[1] describes a set of standard data models that can be applied to
standard business situations. These patterns, it turns out, occur on
several levels. At the basic level are models of the things seen in
business. The patterns in the book are a bit more abstract than
conventionally seen, but they do describe things that are easily
recognizable to anyone: people and organizations, products, contracts,
and so forth.
There is a more abstract level of modeling, however, which is necessary
when the things being modeled don't fall into these tidy categories. This
level, also described in the book, is the subject of this paper.
(For help in reading these models, press here.)
The Basic Model
Before getting into the more exotic models, it is useful to be sure we
understand the basic patterns that will apply to nearly all organizations.
Each real organization will have variations on this model, but here you
will find the elements that will be present in nearly every one. Figure 1,
for example, shows that the entity PARTY
encompasses
PERSON and
ORGANIZATION. That is, a PERSON
and an
ORGANIZATION are each things of
significance, and if you want to refer to either, you can refer to a
PARTY.
PARTIES may be related to each other, as shown by
the entity
PARTY
RELATIONSHIP. This is simply the fact that one
PARTY has a
specified
relationship with another, as in a reporting structure, employment,
marriage, membership in a club, etc. That is, each PARTY
RELATIONSHP must
be from one PARTY and to another
PARTY.
A PARTY may have more than one address. Each
address is shown
in this
model as a SITE, where each PARTY
may be located via
one or more
PARTY PLACEMENTS in a SITE
.
Each
SITE must be in one or more
GEOGRAPHIC AREAS,
such as a city or region.

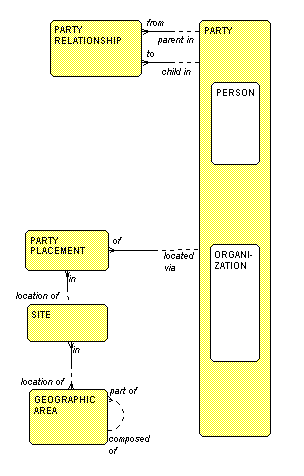

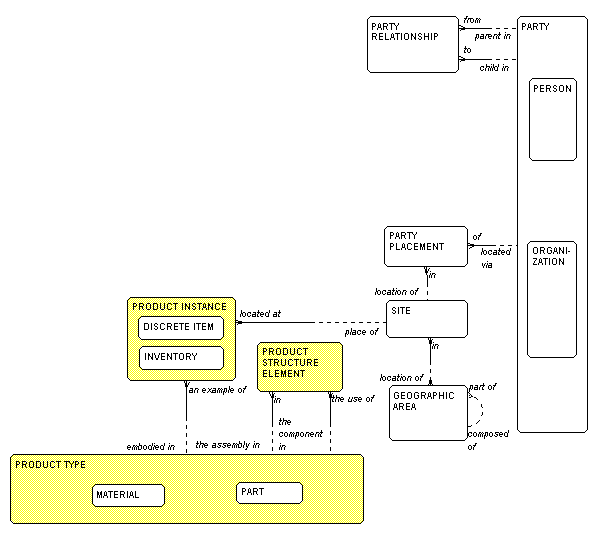

Figure 1: People and Organizations
Figure 2 shows the "stuff" a company deals with. Here it is called
PRODUCT TYPE and PRODUCT INSTANCE
.
It could be
called "asset type" and
"asset", "item type" and "item occurrence", or something similar. Note the
distinction between PRODUCT INSTANCE, a physical
example of
the product,
and PRODUCT TYPE, which is the definition of it,
such as you
would see in a
catalogue. Each PRODUCT INSTANCE must be an
example of
one and
only one PRODUCT TYPE, while each
PRODUCT TYPE
may be embodied in one or more
PRODUCT INSTANCES.
A PRODUCT STRUCTURE ELEMENT is the fact that one
PRODUCT TYPE
may have
another PRODUCT TYPE as a component. Each
PRODUCT STRUCTURE
ELEMENT, then
must be the use of one PRODUCT TYPE
in another
PRODUCT
TYPE. Thus an assembly may have three
sub-assemblies as components, and this would be represented by three
PRODUCT STRUCTURE ELEMENT occurrences
where the assembly is the assembly
in and each sub-assembly is the component in each
PRODUCT
STRUCTURE ELEMENT,
respectively.
Note that a PRODUCT INSTANCE may be either a
DISCRETE ITEM
which is kept
track of individually, or an INVENTORY
which is a collection of items. In
either case, each product instance must be at a
SITE.
Figure 2: Product Types
Figure 3 shows AGREEMENT, where an
AGREEMENT is any formal
relationship between two PARTIES. Typically, this is a
purchase order or a sales order, but it may encompass other
kinds of agreements as well. Invariably, our ORGANIZATION
is one of the PARTIES – either the buyer in
the AGREEMENT
if it is a purchase order, or the seller in the
AGREEMENT
if it is a sales order.
Each AGREEMENT must be composed of one
or more
LINE ITEMS,
where each line item is for a PRODUCT TYPE.
Figure 3: Agreements
ACTIVITIES are the things the organization
does to carry out
its business. This is shown in Figure 4. As with PRODUCT
TYPES and PRODUCT INSTANCES,
there is a distinction
drawn between ACTIVITY TYPES (the definition of
what
is to be done) and ACTIVITIES(the actual doing
of it).
Attributes of an ACTIVITY TYPE include its
description
and a standard length of time it is expected to require,
while attributes of ACTIVITY include the actual date it
occurred and the actual time it took.
Actual ACTIVITIES consume people's time
(recorded in TIMESHEET ENTRY), and other
resources
(recorded in RESOURCE USAGES).
Each
TIMESHEET ENTRY
must be by a PERSON, and charged to an
ACTIVITY.
Each RESOURCE USAGE must be of either a
PRODUCT
INSTANCE or a PRODUCT TYPE, and must be
charged to an ACTIVITY.
ACTIVITIES may be grouped into
WORK ORDERS for various
purposes, but a common one is to produce a PRODUCT TYPE
.
The definition of the standard steps required to produce
a PRODUCT TYPE is a set of ROUTING
STEPS, where
each
ROUTING STEP must be the use of an
ACTIVITY TYPE to
make the PRODUCT TYPE.

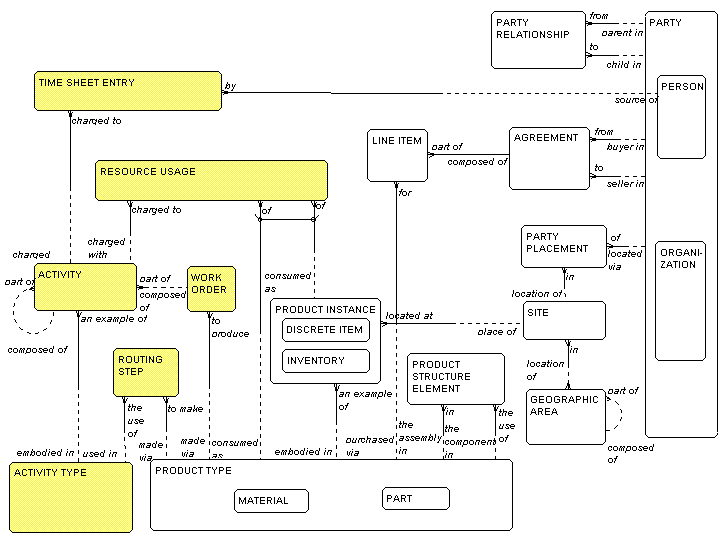

Figure 4: Activities
Parameters
The above model is a good start, but it is not adequate to describe certain
common situations. For example, there is a problem with PRODUCT TYPE and
PRODUCT INSTANCE. For each of these to be an entity suggests that the
attributes for all occurrences of each are the same. This simply is not
true.
The attributes of a compressor are quite different from the attributes of a
computer or a barrel of crude oil. We would like to have a single concept
for "Product", but that concept has many different flavors.
We could define a sub-type for each PRODUCT TYPE,
but new product types are
being invented all the time, and the data management task would be
impossible.
To address this, we introduce the entity
PARAMETER,
as shown in Figure 5.
A
PARAMETER is a
characteristic that is used to define a PRODUCT TYPE.
A PARAMETER ASSIGNMENT is the fact that a
particular
PARAMETER is
used to define a particular PRODUCT TYPE. To wit:
each PARAMETER ASSIGNMENT must be from a
PARAMETER
to a
PRODUCT TYPE.
For example, the
PARAMETER "capacity" might be used to describe
a boiler, while
the PARAMETER "interest rate" might be used to define a
savings account.
(Yes, one of the advantages of this approach is that it works
as well for banks as it does for nuclear power plants.)
Note that the PARAMETER may be expressed in a
UNIT OF MEASURE.
That boiler "capacity" for example, might be in "cubic feet".
The UNIT OF MEASURE that is the term for
a
PARAMETER ASSIGNMENT
can override the default UNIT OF MEASURE of the
PARAMETER by itself. When "capacity" is applied
to a disk drive, for example, the UNIT OF MEASURE
would be "megabytes".

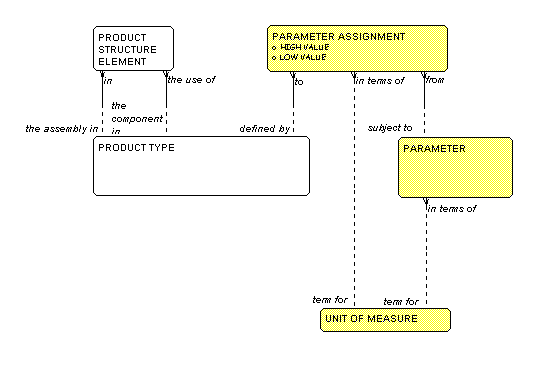

Figure 5: Parameter Assignments
Note that in Figure 6 three kinds of parameters are shown:
A DISCRETE LIST is a PARAMETER
that can take only one
of a specified set of PARAMETER ALLOWABLE VALUES.
For example a
"pharmacological category" for a pharmaceutical would
have a just such a list of legal values.
A DERIVED PARAMETER is calculated from
one or more
other PARAMETERS
and/or constants. This is by means of one or more
PARAMETER DERIVATIONS,
where each
PARAMETER
DERIVATION represents a formula of some kind. The
formula, in turn, must be composed of one or more
PARAMETER DERIVATION ELEMENTS,
where each
PARAMETER
DERIVATION ELEMENT may be the use of another
PARAMETER or the
use of a constant.
Other PARAMETERS simply describe the
PRODUCT TYPE.
If numeric, these could be constrained by a "high value"
and a "low value". Within these constraints, a
PARAMETER ASSIGNMENT could have its own "high
value" and "low value".
Figure 6: Parameters
A set of PARAMETER ASSIGNMENTS defines the
nature of
a PRODUCT TYPE. Any PRODUCT
INSTANCE that is an
example of the PRODUCT TYPE is then evaluated with
values for the PARAMETERS assigned to its associated
PRODUCT TYPE.
Figure 7 shows this. Here a PARAMETER VALUE
is the
fact that a particular PRODUCT INSTANCE
takes a specified
"value" of a PARAMETER.
Note that the arc here is less
about the fact that some are of a PARAMETER
and some
are of a PARAMETER ASSIGNMENT,
than it is about the
fact that you can model it either way. If you specify
that the value is of a PARAMETER ASSIGNMENT
you are
keeping PARAMETERS from being specified that
were not
previously assigned to PRODUCT TYPES.
This is a partial
business rule, although it still does not require
(as a business rule should) that the PRODUCT TYPE
and
PARAMETER that the PARAMETER
VALUE
is for represent a
legal combination as expressed by PARAMETER
ASSIGNMENTS.
If the PRODUCT TYPE "Model 770 ThinkPad®",
for
example, had assigned to it the PARAMETER
"processor
speed", the corresponding PARAMETER VALUE
for the
particular one I am looking at could be "233"
(unit of measure: mhz).
Figure 7: Parameter Values
Your author discovered this structure when doing
work for a bank. Sometime thereafter he was working
for a lumber products company that needed a model for
its laboratory. Fortunately he had been doing the
bank work, so he was fully prepared, coming with the
following variation:
The laboratory does tests on product samples. In
this case (unlike others I came across later), the
company knows the product type it is trying to make.
The tests are simply to determine whether the sample is or is not
that product. For this reason, it is possible to
ascertain what the expected characteristics are to be.
In Figure 8 it can be seen that each PRODUCT TYPE
may
be evaluated in terms of one or more EXPECTED
OBSERVATIONS
each of which is of a particular VARIABLE.
That is, the
PRODUCT TYPE is considered to be within specifications
if the value of a variable is between a "high value" and
"low value" specified in an EXPECTED OBSERVATION of
that VARIABLE.
The laboratory process begins with a SAMPLE
being taken
from a PRODUCT INSTANCE (which is
an example of the
PRODUCT TYPE in question). This SAMPLE
is then subject
to one or more LABORATORY TESTS. Each
LABORATORY TEST,
in turn, is the source of one or more
OBSERVATIONS –
each on a VARIABLE.
If you rename VARIABLE to
PARAMETER,
EXPECTED OBSERVATION
to PARAMETER ASSIGNMENT, and
OBSERVATION to PARAMETER VALUE,
and if you then collapse SAMPLE and
LABORATORY TEST,
you have the model shown above in Figure 7.

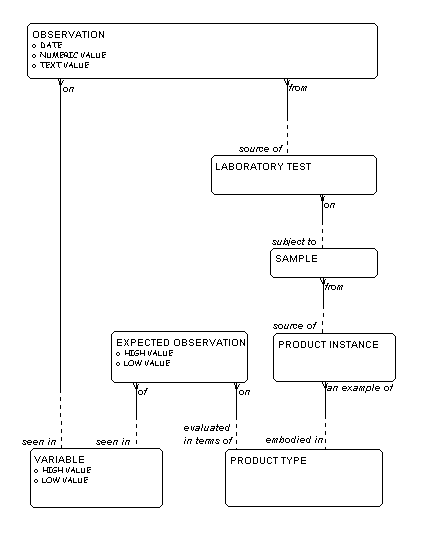

Figure 8: The Laboratory
Clinical Research
This parameterization idea got stretched even
further when applied to the collection of data
from clinical pharmaceutical trials.
Pharmaceutical research is an example of a particularly
messy modeling problem: Clinical data are captured on
"case report forms" (CRFs), which, depending on
the study – indeed, depending on the part of the study –
have a variable number of sections, where each section
could have one or several numbers, pieces of text, or
even drawings. There is no fundamental, underlying
structure here. The only way to address the problem is
to go up one level of abstraction.

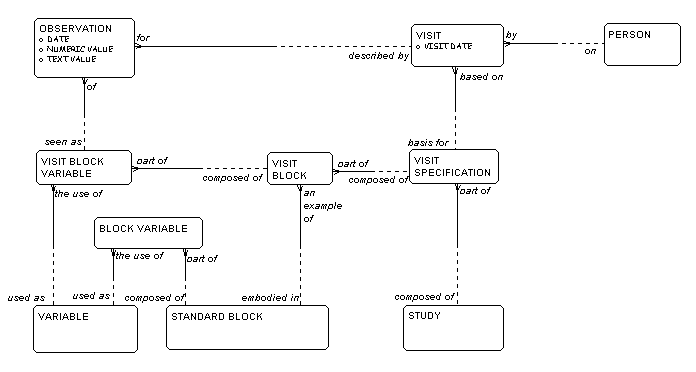

Figure 9 shows how a clinical STUDY
is defined to be
composed of one or more VISIT SPECIFICATIONS
which will be the basis for actual VISITS
by
PEOPLE.
Each VISIT SPECIFICATION
describes the information
to be collected in the corresponding actual VISITS
. This information is organized into
STANDARD BLOCKS, such as "personal information",
"hematological information", "cardio-vascular
information", and so forth. Each STANDARD BLOCK
is
defined in terms of the BLOCK VARIABLES it is
composed of, where a BLOCK VARIABLE is the use
of a
VARIABLE as part of a STANDARD BLOCK.
Each STANDARD BLOCK may be tailored
(to some extent) to each study. Variations are embodied in
a VISIT BLOCK, which is part of a
VISIT SPECIFICATION. Each
VISIT BLOCK
then may have its own definitions of which VISIT
BLOCK VARIABLES are part of it.
(A business rule defined by the research company determines
the extent to which a VISIT BLOCK must conform to the
specifications of its corresponding STANDARD BLOCK.)
Once the CRFs have been defined as to what VISIT BLOCKS
and VISIT BLOCK VARIABLES each
VISIT SPECIFICATION
contains, data may be collected. Each element on the
CRF is an OBSERVATION,which is for
an actual VISIT
at a specific date by
a PERSON. Each OBSERVATION
may be either
text or numeric.
Figure 9: Clinical Research
It may be argued that, while this is the most orderly way to capture all these data, it makes them a little difficult to get at. To correlate measurements of two variables it is necessary to construct a query that asks for all values of a particular variable and the circumstances of their collection, in conjunction with all values of another variable, where the circumstances of their collection are matched with the circumstances of the first. This is hard.
To address this, the pharmaceutical companies that have taken this
approach have devised a table structure derived from this one.
(This was the original "data mart" before that word became fashionable.)
The idea is that what the statisticians want to see is all the data of a
certain kind together.
It turns out that the "block" structure described above gives us the
opportunity to "de-abstract" the data into something a little more
manageable. It is possible to write a single utility program that
takes the observation data and reorganizes it into a single table for
each VISIT BLOCK, with the VARIABLES
showing up as columns in this
table.
This appears in Figure 10. Each table represents a
VISIT BLOCK, and
the columns allow statistical analysis of correlations between similar
variables. Even correlations between variables in different tables
is easier that it was in the original observations table.
Figure 10: "De-Abstracted" Clinical Data
Mapping Legacy Systems
Data modeling is not done in a vacuum. It's often done in conjunction
with a major project. These days, that project is as likely as not to
build a "data warehouse" – a repository that is supposed to hold all
of a company's data and make them available to management for
inspection and analysis.
The problem with building a data warehouse is that, while a data
model is valuable in defining it's architecture, it doesn't help
much in dealing with all those old "legacy" systems that are going
to be the source of the data. The designers of those systems
often were not very cooperative in clearly identifying exactly
what each datum means and where it fits into the larger scheme of things.
The data model does help, in that it provides a road map of what
kind of data have to be in there somewhere. What is needed next,
though, is some sort of mapping from the columns and tables
(fields and files?) of the old systems to the attributes
and entities of the model.
In one sense, this is not a logical
data modeling problem. After all, the legacy
database designs are physical structures,
not logical ones. The assignment, however,
is to make these logical structures useful,
and it is our job to do so.
So, it is necessary to look at the model of our
"metadata repository" that is keeping the "model
of our models". The legacy system consists (for the sake
of argument – we will not get into more complex
legacy systems) of TABLES, each of which is composed
of one or more COLUMNS. Our model, on the other hand,
is made up of ENTITIES, each of which is
composed of
one or more ATTRIBUTES. If life were simple, all we
would need would be a COLUMN MAPPING of
each COLUMN to an

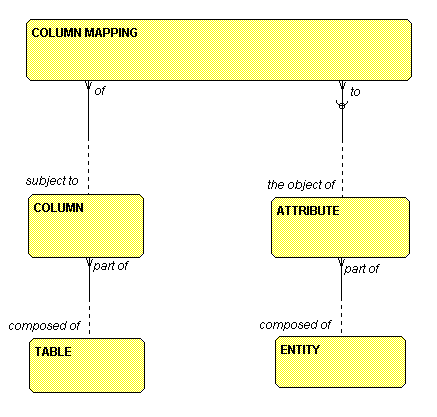

ATTRIBUTE, as you can see in Figure 11.
Figure 11: Simple Mapping
Alas, life is not so simple. If you remember, much of the data
described in our model is not contained in attributes of the entities,
but separately in PARAMETER VALUES. That
is, the definition of the
data structure is not in the ENTITIES and
ATTRIBUTES at all, but
in PARAMETER ASSIGNMENTS. This means that in
some cases, we are
not mapping a COLUMN to an
ATTRIBUTE, but to a
PARAMETER ASSIGNMENT,

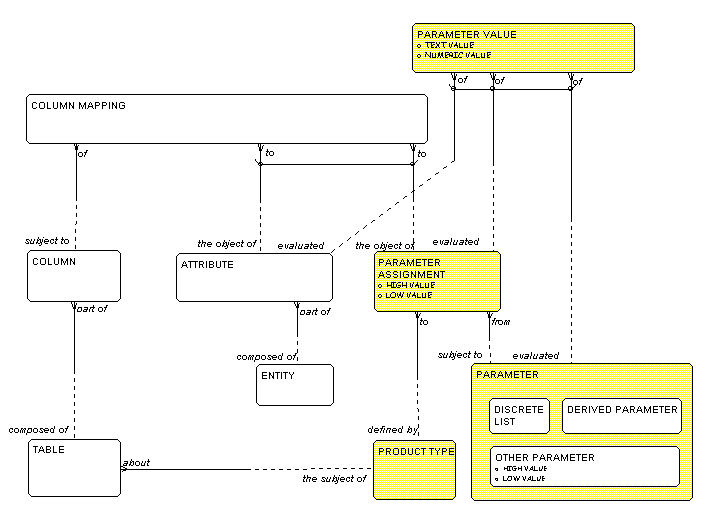

as shown in Figure 12. Here, the COLUMN MAPPING
is
either to an
ATTRIBUTE or to a
PARAMETER ASSIGNMENT.
Note that for the
mapping to a PARAMETER ASSIGNMENT to work, the table
involved had better have something to do with
PRODUCT TYPES.
In this view of the world, note that the PARAMETER VALUES
of a
PARAMETER are exactly like the values for an
attribute. As
implemented in a relational database, of course, those values
will go into a column in the table corresponding to the entity,
rather than being captured in a separate table. Conceptually, however,
a value of an ATTRIBUTE is exactly equivalent
to a value of a
PARAMETER.
Note that we have brought together the application model of our
business with the meta-model that is supposed to define the
application model.[2] Stay tuned.
This gets weirder.
Figure 12: Not So Simple Mapping
Let's look at our model of ENTITIES and
ATTRIBUTES. (See Figure 13.)
[3]
You will recall that each ENTITY is composed of
one or more ATTRIBUTES.
Looking more closely at ATTRIBUTES,
we can see that
each ATTRIBUTE must be constrained by
a DOMAIN.
The DOMAIN provides validation rules for the
ATTRIBUTE. Looking at DOMAINS carefully, it
turns out that there are at least three kinds.
There are OTHER DOMAINS, that simply provide a
format and perhaps limits to numeric values;
VALUE SETS, which require the ATTRIBUTES to
take one of a specified set of ATTRIBUTE ALLOWABLE VALUES; and
CALCULATIONS, which are
calculated from DOMAIN DERIVATIONS, composed of
DOMAIN DERIVATION ELEMENTS that are
the use of other DOMAINS.
Figure 13: Entities and Attributes
Now, look carefully. Does this model look familiar?
We just did it in the parameter exercise. Figure 14
brings all this together. The model on the right,
from our application model, is all about PARAMETERS and
PARAMETER ASSIGNMENTS,
while on the left is the model of ENTITIES
and ATTRIBUTES from the metadata repository.
An ATTRIBUTE is nothing but a
PARAMETER ASSIGNMENT
in disguise. A DOMAIN is a
PARAMETER.
Now, what about that ENTITY on the left and the
PRODUCT TYPE on the right? Well, it so
happens that
the parameter model we've shown here is but a
specialized example of a more general phenomenon.
There are different kinds of PARTIES,
for example,
and we want to collect data about different kinds of
PARAMETERS
for them: departments, individuals, housholds,
professional societies, etc. Similarly,
different TRANSACTION TYPES might be defined
by different PARAMETER ASSIGNMENTS. In general,
there are few enough of these that we can use the
super-type/sub-type structure – you know, the
device we use when there are different
sub-categories of things that have different
attributes? When we use sub-types, conceptually,
we are doing exactly the same thing we do here
with PARAMETER ASSIGNMENTS.
Each PARAMETER ASSIGNMENT could as easily be to
a PRODUCT TYPE, a PARTY TYPE, a
TRANSACTION TYPE,
or anything else. That is, it could be to any
ENTITY.
Figure 14: Attribute Meta Model
All of this is to say that pretty much everything
in the world (with the possible exception of accounting)
can be represented by the "universal data model",
shown in Figure 15.
Figure 15: The Universal Data Model
Footnotes:
-
David Hay, Data Model Patterns: Conventions of Thought, Dorset House Publishers, Inc. (New York: 1996). This article is largely derived from this book.
Return
-
Definition: recursion - (See recursion.)
Return
-
For the attribute model and the consolidated Attribute Meta Model
which follows, your author is indebted to
Allan Kolber, of Butler Technology Solutions, Inc.
Return
